Squarebody Transmission Specs, Gear Ratios & Drivetrain Highway RPM Simulator
Simulate real-world engine RPM at highway speeds across GM Turbo Hydra-Matic automatics, 4-speed overdrives, and heavy-duty manual gearboxes. Grounded in factory gear teeth counts and SAE J1349 formulas.
Highway RPM, Gear Ratio & Tire Size Simulator
Calculate real-world engine RPM at highway speeds across GM factory 3-speed automatics, 4-speed overdrives, and heavy-duty manual transmissions.
| 55 MPH | 65 MPH | 75 MPH | 85 MPH |
|---|---|---|---|
| 1,558 | 1,841 | 2,124 | 2,408 |

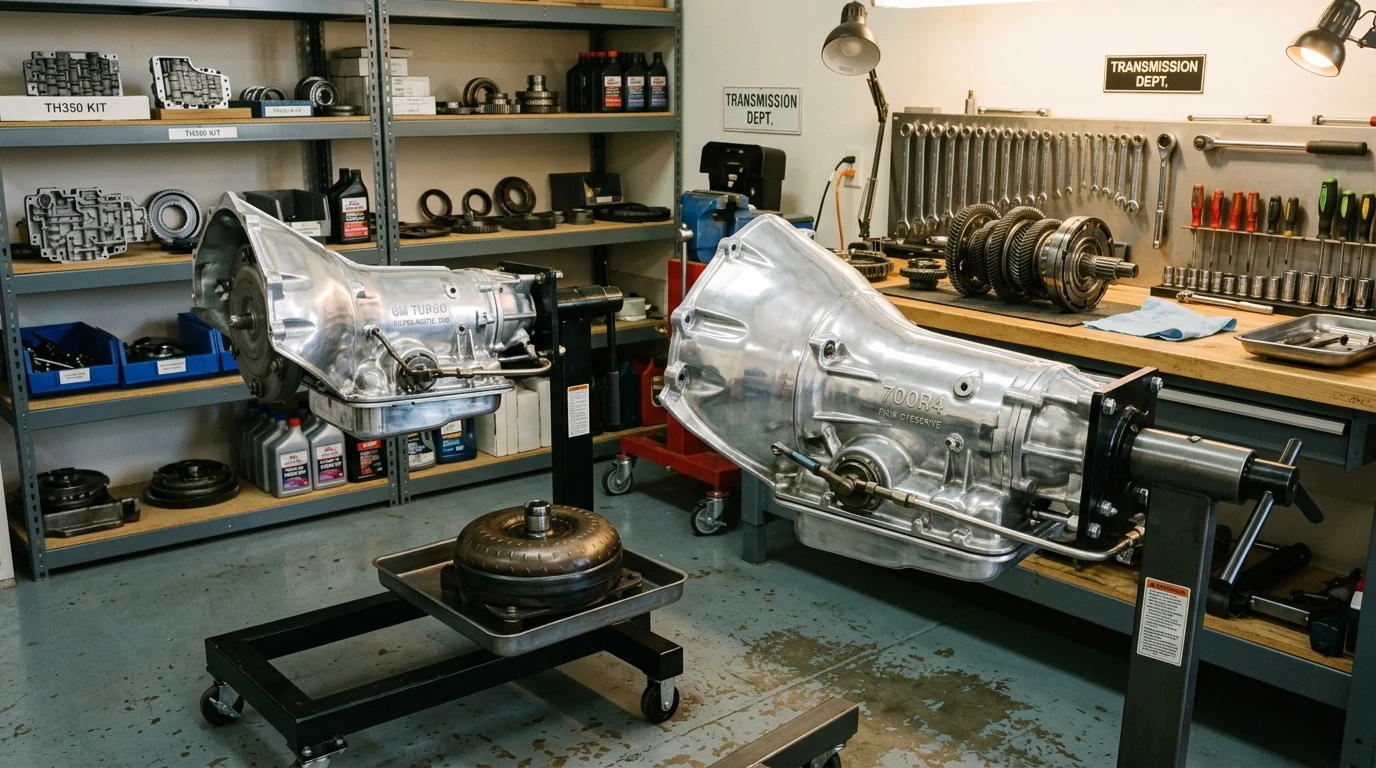

What Transmissions Came in 1973-1987 Chevy & GMC Trucks?
GM Squarebody trucks (1973–1987) utilized five primary factory transmissions: the 3-speed automatic Turbo Hydra-Matic 350 (TH350 with 2.52:1 1st gear) and heavy-duty TH400 (2.48:1 1st gear), the 4-speed automatic overdrive 700R4/4L60 (0.70:1 overdrive), the manual 4-speed SM465 with 6.55:1 granny low gear, and modern manual swaps like the NV3500 and NV4500 (0.73:1 overdrive).
Selecting a transmission for a 1973–1987 Chevy/GMC truck dictates towing launch torque versus highway cruise RPM. From 1973 to 1981, GM trucks used 1:1 direct-drive top gears, requiring tall axle ratios (2.76 or 3.08) to manage highway engine speed.
The 1982 introduction of the 4-speed 700R4 overdrive (0.70:1) with a lockup torque converter enabled steep axle gears (3.73 or 4.10) while keeping highway cruising below 2,000 RPM at 70 MPH. Correlate build options via our Squarebody model year matrix.
Interactive Highway RPM, Gear Ratio & Tire Diameter Calculator
Engine cruising RPM is governed by a strict physical relationship between vehicle road speed, axle reduction, transmission output, and the true rolling diameter of the rear tires:
Drivetrain Highway Cruising RPM Formula
Variable Definition & Units
Target cruising speed.
Ring & pinion ratio (e.g. 3.08, 3.73, 4.10).
Transmission ratio (1.00 direct, 0.70 OD).
Rolling tire height in inches.
SAE mathematical conversion constant.
At 70 MPH with a 3.73 axle ratio, a 700R4 in overdrive (0.70 ratio), and 31-inch tires: (70 × 3.73 × 0.70 × 336.13) / 31.0 = 1,983 RPM.
Metric tire diameter: Tire Diameter = [(2 × Width mm × Aspect / 100) / 25.4] + Rim (e.g. 275/60R15 = 27.99 in).
Factory Gear Ratio Matrix: TH350, TH400, 700R4, SM465 & NV4500
Factory gear ratios for original and swap transmissions:
| Transmission Model | Type | 1st Gear | 2nd Gear | 3rd Gear | 4th Gear | 5th Gear | Reverse |
|---|---|---|---|---|---|---|---|
| Turbo Hydra-Matic 350 (TH350) | Automatic 3-Speed | 2.52:1 | 1.52:1 | 1.00:1 | — | — | 1.93:1 |
| Turbo Hydra-Matic 400 (TH400 / 3L80) | Automatic 3-Speed Heavy Duty | 2.48:1 | 1.48:1 | 1.00:1 | — | — | 2.08:1 |
| 700R4 / 4L60 (Overdrive) | Automatic 4-Speed Overdrive | 3.06:1 | 1.63:1 | 1.00:1 | 0.70:1 | — | 2.29:1 |
| Muncie SM465 (Granny Low) | Manual 4-Speed Heavy Duty | 6.55:1 | 3.58:1 | 1.70:1 | 1.00:1 | — | 6.09:1 |
| New Venture NV3500 (5-Speed Swap) | Manual 5-Speed Overdrive | 4.02:1 | 2.32:1 | 1.40:1 | 1.00:1 | 0.73:1 | 3.55:1 |
| New Venture NV4500 (Heavy Duty 5-Speed) | Manual 5-Speed Overdrive HD | 5.61:1 | 3.04:1 | 1.67:1 | 1.00:1 | 0.73:1 | 5.04:1 |
Cross-reference factory RPOs (e.g. M40 or MD8) with our VIN decoder.
Transmission Fluid Capacity, Viscosity & Filter Service Guide
Factory fluid specifications and capacities are summarized below [GM FSM Ref: Sec 7A, p. 14]:
| Model | Pan Bolts | Service Fill | Dry Fill | Factory Fluid Specification |
|---|---|---|---|---|
| TH350 Sec 7A, p. 14GM Service Manual X-8632Sec 7A • TH350 Fluid Telemetry FSM Microfiche #ST-330 | 13 Bolts | 3.5 Quarts | 10.0 Quarts | Dexron III / VI Automatic Transmission Fluid |
| TH400 Sec 7A, p. 22GM Service Manual X-8632Sec 7A • TH400 Fluid Telemetry FSM Microfiche #ST-330 | 13 Bolts | 4.0 Quarts | 11.5 Quarts | Dexron III / VI Automatic Transmission Fluid |
| 700R4 Sec 7A, p. 38GM Service Manual X-8632Sec 7A • 700R4 Fluid Telemetry FSM Microfiche #ST-330 | 16 Bolts | 5.0 Quarts | 11.5 Quarts | Dexron VI Synthetic / Conventional ATF |
| SM465 Sec 7B, p. 8GM Service Manual X-8632Sec 7B • SM465 Gear Lube FSM Microfiche #ST-330 | Manual (0 Bolts) | 4.0 Quarts | 4.0 Quarts | SAE 80W-90 GL-4 Mineral Gear Lubricant |
Interactive A/C R12 to R134a Conversion & Calibration Stage
Calculate the exact 80% charge weight, PAG 150 oil capacity, and low-pressure cycling switch calibration when retrofitting classic 1973–1987 GM truck air conditioning systems from Freon R12 to HFC-134a.
Interactive Diagnostic Decision Tree
Step-by-step diagnostic logic for 700R4 TV cable hydraulics and ignition/crank fault isolation.
Frequently Asked Questions About Squarebody Transmissions
01 Can you replace a TH350 with a 700R4 without cutting the driveshaft?
Swapping from a short-tail TH350 to a 700R4 requires shortening the driveshaft by ~3.0 inches, sliding the crossmember rearward ~2.0 inches, and mounting a calibrated TV cable bracket. Overall case length increases from 27.6 to 30.7 inches.
02 What happens if the 700R4 TV cable is not properly adjusted?
Unlike the vacuum-modulated TH350, the 700R4 relies on the Throttle Valve (TV) cable to set line pressure. Driving with a slack TV cable starves the 3-4 clutch pack of hydraulic pressure, causing catastrophic slippage and burnout within 10 to 20 miles.
03 How do you identify a TH350 vs TH400 oil pan?
Pan silhouette is the definitive external identifier. The TH350 pan is square with one chamfered corner (13 bolts). The heavy-duty TH400 pan has an irregular, Texas-shaped perimeter with a passenger-side indent (13 bolts). The 700R4 uses a symmetrical 16-bolt rectangle.
04 What gear oil should you use in an SM465 manual transmission?
The cast-iron SM465 requires SAE 80W-90 GL-4 mineral lubricant. Avoid standard GL-5 gear oils unless verified safe for yellow metals, as aggressive sulfur-phosphorus EP additives chemically corrode bronze synchronizer rings over time.
