GM Squarebody Axle & Differential Specifications
Comprehensive guide to identifying, servicing, and optimizing 1973–1987 GM 10-Bolt, 12-Bolt, 14-Bolt semi/full-float axles and Eaton G80 Gov-Lok differentials.
Differential & Axle Platform Comparator
Select any factory GM truck axle to inspect ring gear diameter, spline count, fluid capacities, and torque ratings.
Factory GM Squarebody Differential Reference Guide
| Axle Model | Cover Pattern | Ring Gear | Axle Spline | Housing Type | Fluid Spec | Applications |
|---|---|---|---|---|---|---|
| GM 10-Bolt Rear Sec 4A, p. 12GM Service Manual ST-330Section 4A — 8.5" Ring Gear Tolerances Pinion Preload: 25–30 in-lb | 10 Bolts (Round) | 8.50 in | 28 / 30 Spline | Semi-Floating (C-Clip) | 4.25 Pts (80W-90) | 1977–1987 C10, K10, K5 Blazer |
| GM 12-Bolt Rear Sec 4A, p. 18GM Service Manual ST-330Section 4A — 8.875" Ring Gear Tolerances Backlash: 0.005–0.008 in | 12 Bolts (Dual Flats) | 8.875 in | 30 Spline | Semi-Floating (C-Clip) | 4.00 Pts (80W-90) | 1973–1981 C10, K10 |
| GM 14-Bolt Semi-Float Sec 4B, p. 8GM Service Manual ST-330Section 4B — 9.5" Semi-Float Axle Specs Pinion Nut: 200–250 ft-lb | 14 Bolts (Oval) | 9.50 in | 33 Spline | Semi-Floating (C-Clip) | 5.50 Pts (80W-90) | 1981–1987 C20, Light 3/4-Ton |
| GM 14-Bolt Full-Float Sec 4B, p. 24GM Service Manual ST-330Section 4B — 10.5" 14-Bolt Full-Float Pinion Support Preload: 25–35 in-lb | 14 Bolts (Shield) | 10.50 in | 30 Spline | Full-Floating Hub | 6.30 Pts (80W-90/85W-140) | 1973–1987 C20, K20, C30, K30 |
| Dana 44 Front Sec 4C, p. 10GM Service Manual ST-330Section 4C — Open Knuckle Front Drive Ball Joint Preload: 50 ft-lb | 10 Bolts (Octagonal) | 8.50 in | 30 Spline | Open Knuckle Front | 3.50 Pts (80W-90) | 1973–1977 K10, K20, K5 4WD |
| Dana 60 Front Sec 4C, p. 30GM Service Manual ST-330Section 4C — K30 1-Ton Kingpin Axle Kingpin Bushing Cap: 70–90 ft-lb | 10 Bolts (Asymmetric) | 9.75 in | 35 Inner / 30 Outer | Kingpin Cast Iron | 6.00 Pts (80W-90) | 1977–1987 K30 1-Ton 4WD |

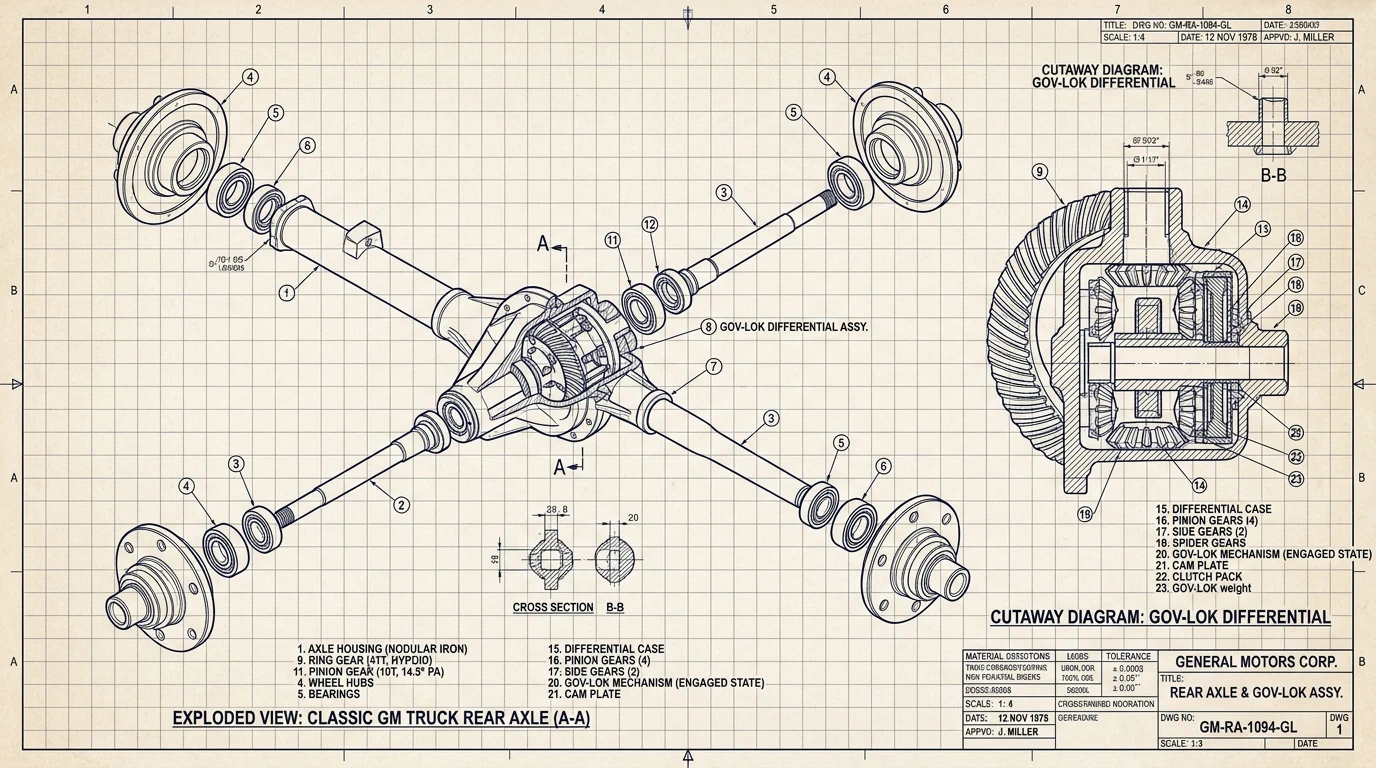

Eaton Gov-Lok (RPO G80) Mechanical Locking Operation
The factory GM locking differential (RPO G80) is an Eaton Gov-Lok mechanical locking carrier. Unlike spring-preloaded clutch-pack limited slip differentials that allow continuous slippage, the Gov-Lok functions as a fully open differential during normal cornering to eliminate tire chatter and binding.
When one rear tire begins spinning at more than 100 RPM faster than the opposing tire, centrifugal force causes an internal flyweight governor to swing outward, latching against a stationary pawl. This activates a heavy ramp cam that clamps the clutch pack, locking both axle shafts together at 100% torque transfer until vehicle speed exceeds 20 MPH, at which point an internal latch disengages the unit.
Pinion Angle Geometry, Gear Backlash & Lubrication Protocol
Achieving long-term durability on rebuilt GM 10-bolt, 12-bolt, and 14-bolt differentials demands precise adherence to factory pinion preload and ring gear backlash specifications. On leaf-sprung Squarebody rear axles, operating pinion angle must be set 1.5 to 2.5 degrees downward relative to the transmission output shaft to compensate for spring wrap under acceleration.
Factory ring gear backlash across all GM corporate axles is calibrated between 0.006 and 0.010 inches (0.15–0.25 mm) using dial indicator measurement against the drive side of the ring gear teeth. Excessive backlash leads to harsh clunking on deceleration and accelerated tooth wear, while tight backlash results in gear whine, thermal expansion binding, and rapid bearing failure.
Differential lubricant selection directly dictates clutch pack longevity. Standard open differentials utilize SAE 80W-90 GL-5 hypoid gear oil. For factory Positraction or Eaton Gov-Lok units, GM specifies adding 4 ounces of GM Limited Slip Differential Additive (Part #1052358) or equivalent friction modifier to prevent clutch chatter and erratic locking behavior during tight radius turning.
Frequently Asked Axle & Differential Questions
01 How do I identify a GM 10-Bolt vs 12-Bolt vs 14-Bolt rear axle?
Count the rear differential inspection cover bolts: a 10-Bolt has 10 cover bolts with an 8.5-inch round ring gear. A 12-Bolt has 12 cover bolts with an 8.875-inch ring gear and dual horizontal bottom bolt flats. A 14-Bolt has 14 cover bolts in an oval/shield pattern; the 9.5-inch Semi-Floater retains axles via C-clips, while the legendary 10.5-inch Full-Floater features protruding rear wheel hubs with 8 axle flange retaining bolts on the wheel face.
02 Does the factory GM G80 Gov-Lok differential require friction modifier additive?
No. The Eaton Gov-Lok (RPO G80) is a mechanical centrifugal locking differential, not a traditional friction-clutch Positraction. Eaton specifically warns AGAINST using friction modifier additives (limited slip additives), as reduced friction prevents the flyweight governor from reaching the centrifugal force required to lock the clutch pack.
03 What causes the Eaton Gov-Lok G80 differential to fail (the 'Gov-Bomb')?
The G80 utilizes a mechanical flyweight governor that spins out when wheel speed difference exceeds 100 RPM, wedging a pawl into a cam plate. If a tire is spinning violently at high wheel speed on ice and suddenly catches dry pavement, the sudden shock load shears the cast-iron flyweight bracket and splits the differential carrier.
04 What is the strongest factory front axle for a 4WD Squarebody?
The GM Corporate Dana 60 (RPO K30) kingpin front drive axle, standard on 1977–1987 K30 1-ton 4WD trucks. It features a massive 9.75-inch ring gear, 35-spline inner axle shafts, heavy cast-iron steering knuckles with upper bronze kingpin bushings, and 1.5-inch 30-spline outer stub shafts.
Brake Pull & Spongy Pedal Diagnostic Isolator
Distinguish caliper slide pin binding from collapsed internal flexible rubber brake hoses, and diagnose low pedal travel across front disc and rear drum axles.
- Step 1 (Symptom Verification): Jack up the front axle. Spin the suspected dragging wheel by hand; apply firm brake pedal pressure and release. Note whether the wheel remains locked solid.
- Step 2 (The Bleeder Relief Test): Loosen the caliper bleeder screw 1/4 turn to relieve trapped hydraulic line pressure.
Outcome B (Wheel Remains Locked): The caliper slide pins are seized in knuckle bushings, or the caliper piston is cocked in the bore. Rebuild or replace the caliper.
- Pumping Required (Low Pedal): If the brake pedal drops low on the first stroke but firms up after 2 pumps, the rear drum brake self-adjusters (star wheels) are seized. Rotate star wheels until brake shoes lightly drag on the drum.
- Spongy Rubber Feel (Soft Pedal): Trapped air in the Delco combination proportioning valve front metering chamber. Use a proportioning valve lock tool (J-26869) to hold the metering pin open during pressure bleeding.
- Violent Left/Right Grab on Light Touch: Rear axle shaft wheel seal leaking 80W-90 differential gear oil onto drum brake linings. Oil contamination causes friction linings to grab aggressively.
